• Creating an order and generating the tracking link
• Tracking Page
• Consult order
• Delete order

To generate a tracking link, you must make a request to the API using the POST method to the following endpoint:

• https://api.maplink.global/tracking/v1/orders – POST

Creating an order and generating the tracking link

Mandatory parameters

• description – Description of the order.
• status – Object with data about the order status.
  • value – Possible values: ["PREPARING", "ON_THE_WAY", "DONE", "NOT_DONE", "CANCELLED"].
  • label – Custom text to be displayed on the tracking page.
• destination – Object containing the destination location data.
  • road – (Optional) Street name of the destination location.
  • number – (Optional) Destination location number.
  • city – (Optional) City of destination location.
  • zipCode – (Optional) Zip code of the destination location.
  • state – (Optional) Object containing state data from the destination location.
    • code – State acronym.
    • name – State name.
  • mainLocation – Object containing the coordinates of the destination location.
    • lat – Latitude coordinate in decimal degrees.
    • lon – Latitude coordinate in decimal degrees.

Example with mandatory parameters

{
    "description": "Product Test",
    "status": {
        "value": "PREPARING",
        "label": "Estamos preparando o seu pedido"
    },
    "destination": {
        "mainLocation": {
            "lat": -22.72725697031394,
            "lon": -47.636846753567944
        }
    }
}

Optional parameters

• companyName – Company Name.
• number – Order number.
• theme – Theme that will be used to customize the tracking page. If not informed, the white-label theme will be applied.
• estimatedArrival – Delivery estimate. Format "yyyy-MM-ddTHH:mm:ss". Example: "2022-11-22T10:00:00"
• totalValue – Object containing the total value of the order.
  • value – Number representing the total value of the order.
  • currency – Currency. For Real, use BRL
• origin – Object containing data from the departure location.
  • road – (Optional) Street name of the departure location.
  • number – (Optional) Number of the departure location.
  • city – (Optional) City of departure location.
  • zipCode – (Opcional) Zip code of the departure location.
  • state – (Optional) Object containing data from the departure location.
    • code – State acronym.
    • name – State name.
  • mainLocation – Object containing the coordinates of the departure location.
    • lat – Latitude coordinate in decimal degrees.
    • lon – Latitude coordinate in decimal degrees.
• driver – Object containing driver data
  • name – (Optional) Driver name
  • image – (Optional) URL of the driver’s photo to be displayed on the website
  • currentLocation – Object with the initial coordinates of the driver.
    • lat – Latitude coordinate in decimal degrees.
    • lon – Longitude coordinate in decimal degrees.

Note: If the order status is ON_THE_WAY, the driver parameter becomes mandatory.

Example with optional parameters

{
  "number": "1232132132143438",
  "description": "Product Test",
  "estimatedArrival": "2022-11-22T10:00:00",
  "companyName": "Maplink",
  "totalValue": {
    "value": 23.12,
    "currency": "BRL"
  },
  "status": {
    "value": "ON_THE_WAY",
    "label": "Pedido em trânsito"
  },
  "origin": {
    "road": "Alameda Campinas",
    "number": "579",
    "city": "São Paulo",
    "zipCode": "01419001",
    "state": {
      "code": "SP",
      "name": "São Paulo"
    },
    "mainLocation": {
      "lat": -22.7342864,
      "lon": -47.6480644
    }
  },
  "destination": {
    "road": "R. Menina Rosana",
    "number": "70",
    "city": "Itajaí",
    "zipCode": "88304250",
    "state": {
      "code": "SC",
      "name": "Santa Catarina"
    },
    "mainLocation": {
      "lat": -22.72725697031394,
      "lon": -47.636846753567944
    }
  },
  "driver": {
    "name": "Maplink BR",
    "image": "https://example.com",
    "currentLocation": {
      "lat": -23.564515,
      "lon": -46.652681
    }
  },
  "theme": "DEFAULT"
}

Response example

The response will have the following structure:

{
    "id": "63a1b72fd2b7520ade692253",
    "url": "https://tracking.maplink.global/eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJjIjoicUJQRVJzWXBHdUJwOWtzeEExRUduY0lZbFZNOFVMZWUiLCJpZCI6IjYzYTFiNzJmZDJiNzUyMGFkZTY5MjI1MyIsImlhdCI6MTY3MTU0MjU3NX0.NzncB9t_1ShqnlbbS3O3gGt8E0_rloxKrMrmVDwcnQU"
}

Where:

• id – Reference ID for the order;
• url – Link to the tracking page.

Tracking Page

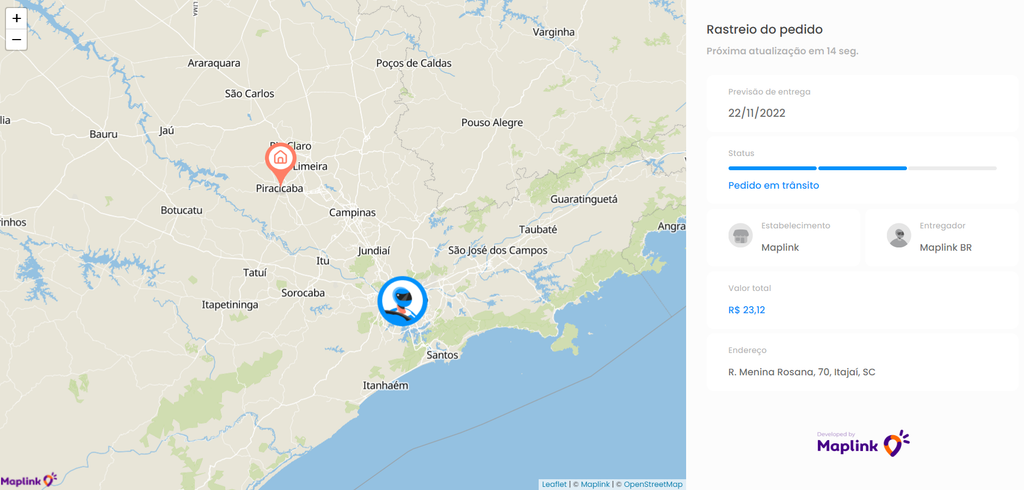

The white-label tracking page template can be seen below:

Consult order

To query the order, simply send a request with the GET method to the following endpoint: https://api.maplink.global/tracking/v1/orders/{{trackingId}}

Where the term {{trackingId}} must be replaced by the ID of the request to be queried.

Orders and tracking links are available for consultation during a 7-day period.

Delete order

To delete a order, simply send a request with the DELETE method to the following endpoint:

https://api.maplink.global/tracking/v1/orders/{{trackingId}}

Where the term {{trackingId}} must be replaced by the ID of the order to be deleted.
